ADVANCED AUTOMATION FOR MAXIMUM BAKING PRECISION

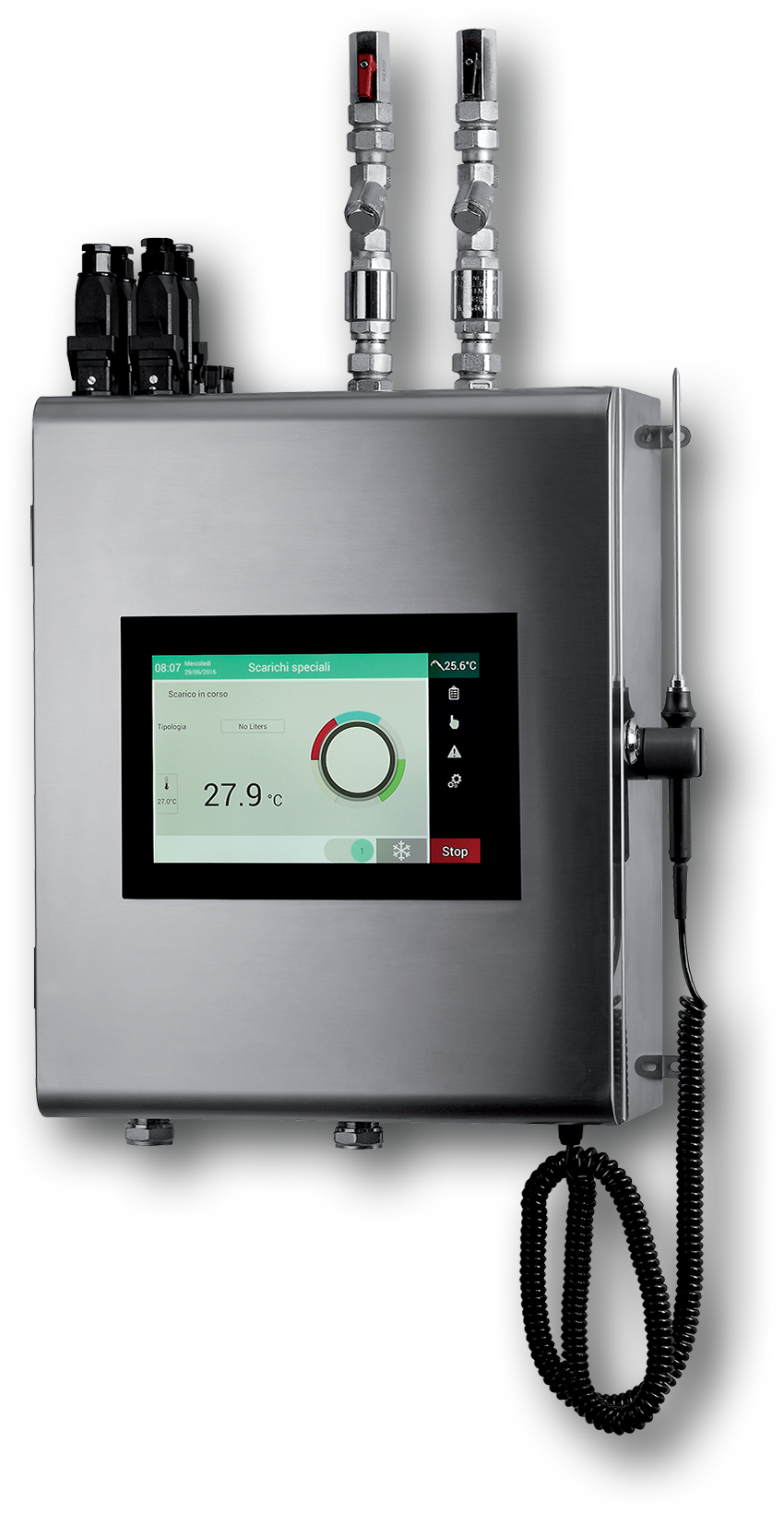

Innovation meets precision. DOMIX 60 and DOMIX 70 represent the top-tier in automatic water dosing and mixing for the baking industry. These devices are designed for those who demand peak performance, reliability, and digitalization. Equipped with a 10” touchscreen interface and intelligent self-learning software, they can manage up to 99 different recipes and ensure maximum precision in both temperature and volume. Everything is seamlessly integrated into our STM-Cloud ecosystem for total control – even remotely.

1/2” inlets

3/4” inlets

Need higher flow capacity? DOMIX 70 features 3/4” inlets and is available in all four models.

ADVANTAGES

REMOTE MANAGEMENT AND SUPPORT

Monitor and update your system wherever you are thanks to STM-Cloud, with access via app or browser for uninterrupted operation.

MAXIMUM PRECISION

Temperature tolerance of just ±0.5°C: the perfect ingredient for uniform, high-quality dough.

CONFIGURABLE HARDWARE

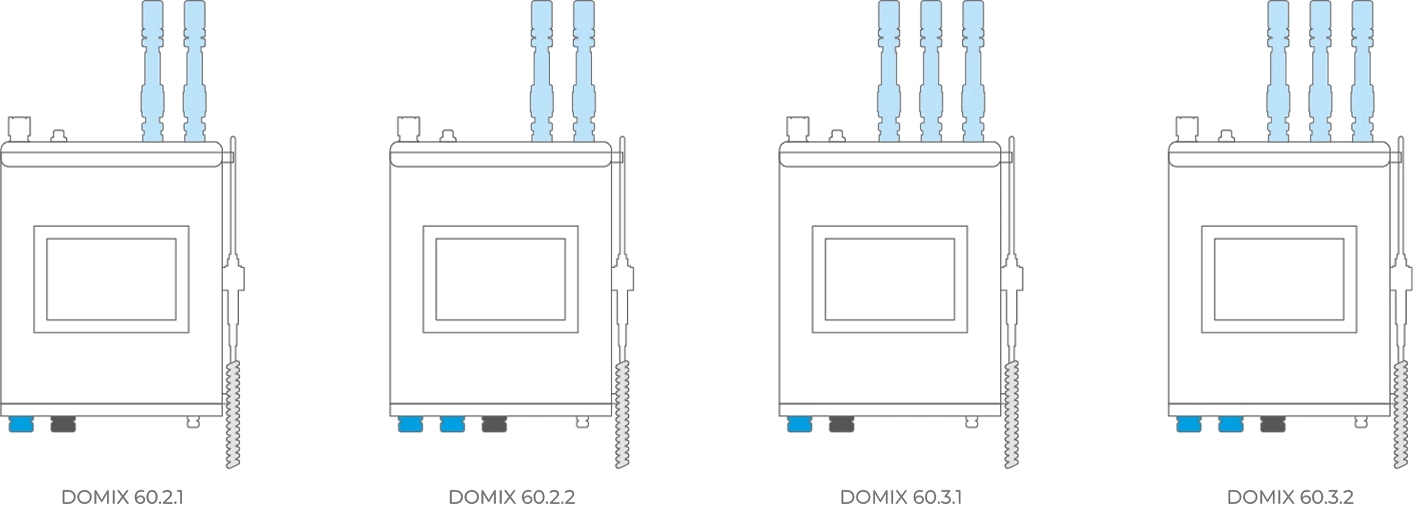

Choose the setup that best suits your production: 2 or 3 inlets, 1 or 2 outlets, 1/2” or 3/4” inlets.

SMART SOFTWARE

The system learns and adapts to actual working conditions, autonomously optimizing timing and accuracy.

99 RECIPES IN MEMORY

Extensive customization capacity: single, double, multiple, and percentage-based dosing, even for emergency operations.

EASY TO USE

10” full-color touch interface, with intuitive graphics, clear menus, and smooth navigation.

INTEGRATED FAQ SECTION

Answers displayed directly on the screen to resolve common doubts in real time.

EASY MAINTENANCE

Accessible components and self-diagnostics help detect anomalies in just a few steps.

2+3-YEAR WARRANTY

STM reliability with extendable coverage to protect your investment over time.

TECHNICAL SPECIFICATIONS

	DOMIX 60.2.1	DOMIX 60.3.1	DOMIX 60.2.2	DOMIX 60.3.2	DOMIX 70.2.1	DOMIX 70.3.1	DOMIX 70.2.2	DOMIX 70.3.2
Ingressi idraulici	2×1/2”	3×1/2”	2×1/2”	3×1/2”	2×3/4”	3×3/4”	2×3/4”	3×3/4”
N. Impastatrici da servire	1		2		1		2
Precisione temperatura	±0,5°C (±0,9°F)
By-Pass	Sì
Precisione dosaggio	±1%
Interfaccia utente	Touch screen tft a colori da 10”
Ricette in memoria	99 (per scarichi singoli, doppi, multipli e in percentuale)
Portata a 1 bar e 20°C	20 L (44 lb)				35 L (77 lb)
Portata a 5 bar e 20°C	55 L (121 lb)				65 L (143 lb)
Scarico massimo	999,9 L; 999 lb + 15 oz; 999,9 lb
Raccordi uscita	22 mm
Campo di regolazione	1 ÷ 60°C (34 ÷ 140°F)
Temperatura max in ingresso	65°C (150°F)
Pressione max/min in ingresso	5 bar (72,5 psi) / 2 bar (29 psi)
Sonda esterna	Termoresistenza PT1000 ClasseA
Sonda interna	Termocoppia tipo K
Telecomando pompa	Sì
Opzioni di comunicazione	Ethernet, RS 485, Input START/STOP remoti, Segnale FINE SCARICO
Materiale struttura	Acciaio inox AISI 304
Alimentazione	85 ÷ 240 V – 50/60 Hz
Potenza assorbita	60 VA
Peso imballo	23,5 Kg
Dimensioni imballo	62x62x26 (cm)
