ACCESSIBLE AUTOMATION FOR HIGH VOLUMES AND EFFICIENCY

Essential, precise, and accessible: TriDOMIX 50 and 100 are the ideal automatic solution for those managing large water volumes but seeking a solid and straightforward configuration. Thanks to the sequential mixing system, the desired temperature is reached with precision and stability. All of this is supported by an intuitive interface, 99 storable recipes, and the option to integrate with STM refrigeration systems.

1/2” inlet
compact and versatile

3/4” inlet
optimized for high flow rates

BENEFITS

EASY TO USE

Alphanumeric keyboard, shortcut keys, and two-line display for clear interaction even in complex environments.

AUTOMATIC MIXING SYSTEM

Integrated algorithm that autonomously calculates the perfect mix from three inlets, ensuring consistent precision.

GOOD PRECISION

Dosing with ±1% tolerance and mixing with ±1.5°C for quality always under control.

99 RECIPES IN MEMORY

Programmable and scalable dosing, including flour-based percentages, ideal for any recipe or seasonal requirement.

CONFIGURABLE HARDWARE

Available with 1/2” or 3/4” inlets, depending on desired flow rate.

REMOTE CONTROL

Remote START/STOP commands and RS485 protocol for integration with supervisory systems.

PERFECT INTEGRATION WITH STM TWC (TOUCH WATER CHILLER)

Included pump remote control ensures seamless synergy with STM chillers.

2+3-YEAR WARRANTY

Reliable support extended up to 5 years.

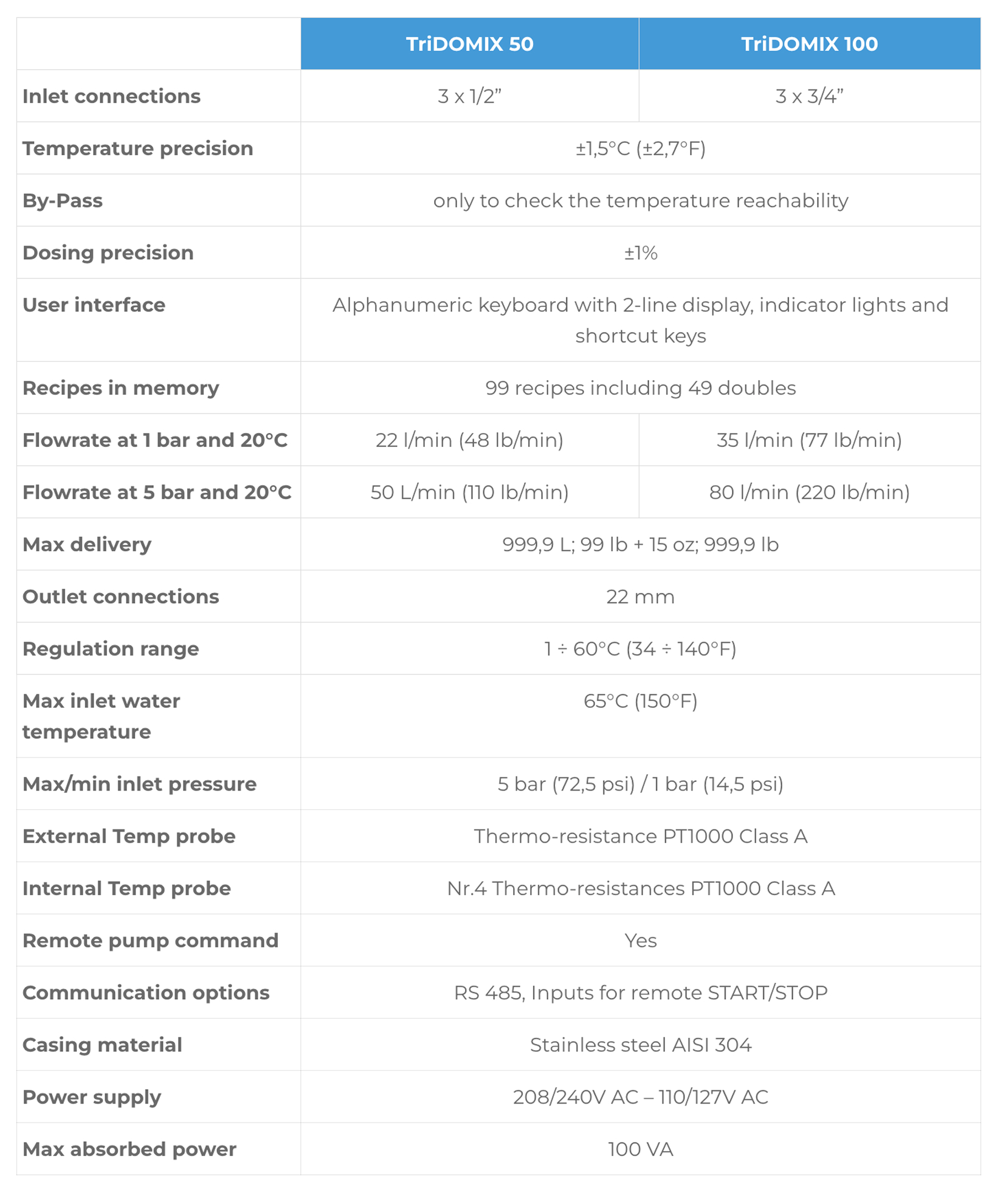

SPECIFICHE TECNICHE

	TriDOMIX 50	TriDOMIX 100
Ingressi idraulici	3 x 1/2”	3 x 3/4”
Precisione temperatura	±1,5°C (±2,7°F)
By-Pass	solo per verificare la raggiungibilità della temperatura
Precisione dosaggio	±1%
Interfaccia utente	Tastiera alfanumerica con display a 2 righe, spie luminose e tasti di scelta rapida
Ricette in memoria	99 ricette programmabili (di cui 49 con scarico doppio)
Portata a 1 bar e 20°C	22 l/min (48 lb/min)	35 l/min (77 lb/min)
Portata a 5 bar e 20°C	50 L/min (110 lb/min)	80 l/min (220 lb/min)
Scarico massimo	999,9 L; 99 lb + 15 oz; 999,9 lb
Raccordi uscita	22 mm
Campo di regolazione	1 ÷ 60°C (34 ÷ 140°F)
Temperatura max in ingresso	65°C (150°F)
Pressione max/min in ingresso	5 bar (72,5 psi) / 1 bar (14,5 psi)
Sonda esterna	Termoresistenza PT 1000 type A
Sonda interna	nr. 4 Termoresistenza PT 1000 type A
Telecomando pompa	Sì
Opzioni di comunicazione	RS 485, Input START/STOP remoti
Materiale struttura	Acciaio inox AISI 304
Alimentazione	208/240V AC – 110/127V AC
Potenza assorbita	100 VA
